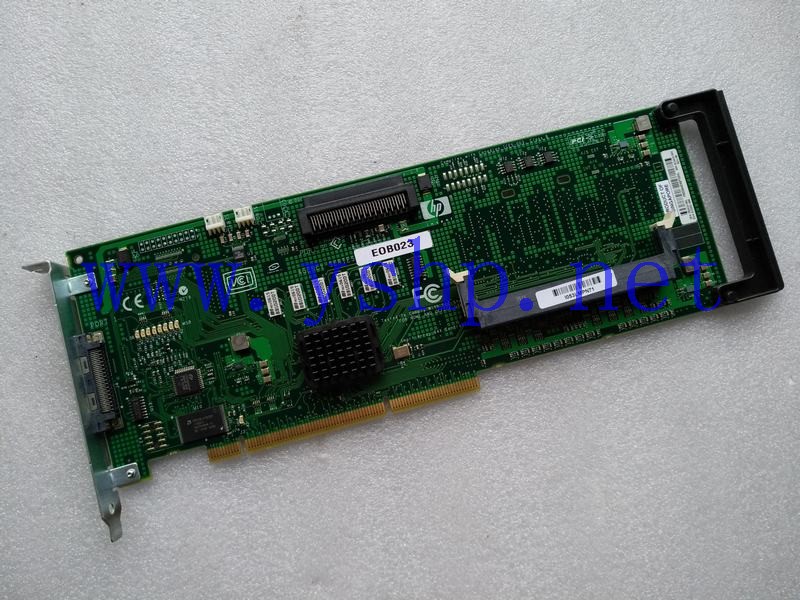

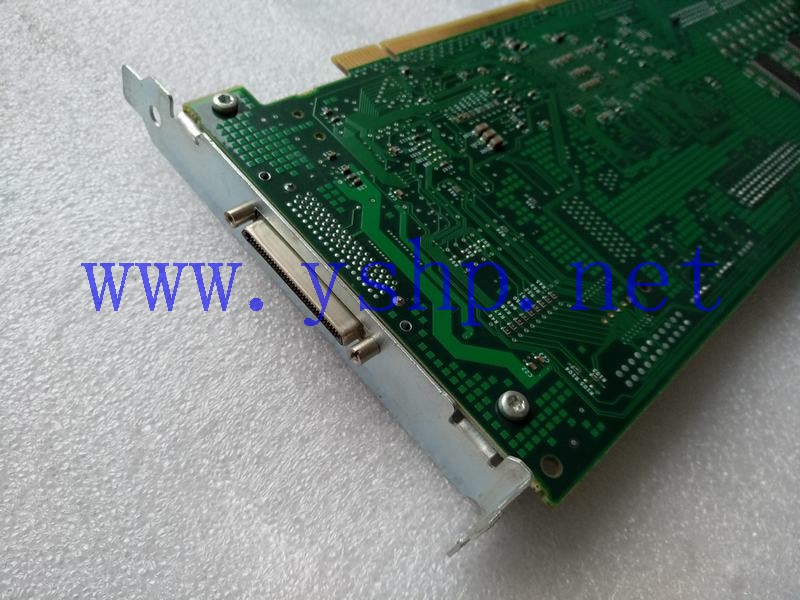

产品名称：HP Smart Array 642 PCI-X Ultra320 SCSI 阵列卡 305415-001 011815-002 012591-000

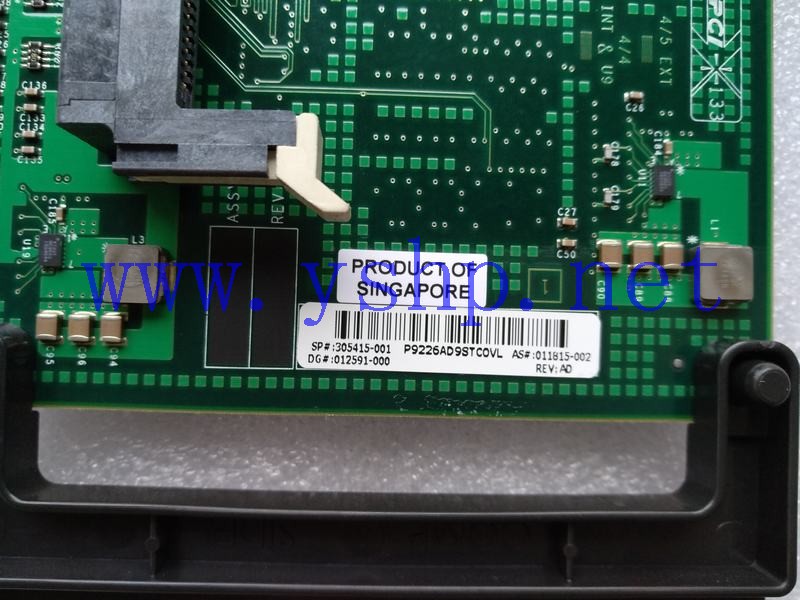

备件号：305415-001

Description: Smart Array 642 Dual Channel Ultra320 PCI-X Controller Spare Part# 305415-001 Overview: The new Smart Array 642 Controller (SA-642) is a 64-bit, 133 MHz PCI-X dual SCSI channel PCI array controller for entry level hardware-based fault tolerance. Utilizing both SCSI channels (1 internal and 1 external) of the SA-642 allows you to configure up to 20 hard drives (6 internal, 14 external) to store up to 2.9TB of storage per PCI slot. The SA-642 provides high reliability and increased performance over the Smart Array 532, thus providing excellent value and lowering the total server ownership cost. In addition, the SA-642 is data compatible with all Ultra320, Wide Ultra3 and Wide Ultra2 drives, offering an unparalleled degree of investment protection. Designed and integrated with HP entry-level and workgroup ProLiant servers, this product provides worry-free data protection. The Smart Array 641/642 Controller provides ProLiant DL and ML servers with an entry-level hardware RAID protection for OS and log files, where hardware RAID is needed at an entry-level price point.

Specifications:  Category Proliant Controller Sub-Category SCSI PCI-X Generation 642 Part Number 305415-001 Products ID 12061 Device Type Storage Controller (RAID) - plug-in card Interface Type PCI-X / 133 MHz Controller Interface Type Ultra320 SCSI Data Transfer Rate 320 MBps Buffer Size 64 MB (installed) / 128 MB (max) Supported Devices Hard Drive Channel Qty 2 Max Storage Devices Qty 20 RAID Level RAID 0, RAID 1, RAID 5, RAID 10

适合机器：HP 服务器等

保修期限：保修一个月
