上海 MOXA 摩莎 ISA C104HS 232卡 4口 PCI串口卡 4-port

上海 MOXA 摩莎 ISA C104HS 232卡 4口 PCI串口卡 4-port

  • 上架时间:
    商品点击数:2473
  • 本店售价:面议 Inquiry
    用户评价: 969508902@qq.com
  • 购买数量:

商品描述:

商品属性

上海源深科技&服务器配件供应商

产品名称:MOXA 摩莎 ISA C104HS 232卡 4口 PCI串口卡

Hardware
Comm. Controller 16C550C or compatible x 4
Bus 32-bit, Ver. 2.1 PCI
Connector(s) Female DB37 (on the board)
Serial Interface
Serial Standards RS-232
Number of Ports 4
Number of Boards 4
Performance
Baudrate 50 bps to 921.6 Kbps
Serial Communication Parameters
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, even, odd, space, mark
I/O Address Assigned by BIOS
IRQ Assigned by BIOS
Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Driver Support
Operating Systems Windows 2000/XP/2003, Windows NT, Windows 95/98/ME, Windows XP Embedded, DOS, FreeBSD 4.x, Linux 2.2.x (Alpha), Linux Base, SCO Open Server 5, SCO UnixWare 2.1.x, SCO UnixWare 7
Physical Characteristics
Dimensions 120 x 100 mm (W x D)
Environmental Limits
Operating Temperature 0 to 55°C
Operating Humidity 5 to 95% RH
Storage Temperature -20 to 85°C
Regulatory Approvals FCC, CE
Power Requirements
Power Consumption C104H/PCI: 110 mA max. (+5V),
44.8 mA max. (+12V),
16.2 mA max. (-12V)
C104HS/PCI: 110 mA max. (+5V),
44.8 mA max. (+12V),
16.2 mA max. (-12V)
ESD Protection C104HS/PCI: 25 KV ESD per serial port
保修期限:保修一个月



感谢您惠顾源深科技,本公司备有全系列服务器配件,出售的配件都可以开具正规机打发票,如果无法在我们网站上找到自己需要的产品,可拨打下方的联系电话直接询问,谢谢!





联系人:杨 先 生

淘宝旺旺:点击这里给我发消息

QQ:
点击这里给我发消息 969508902

MSN:969508902@qq.com

手机:15900814815

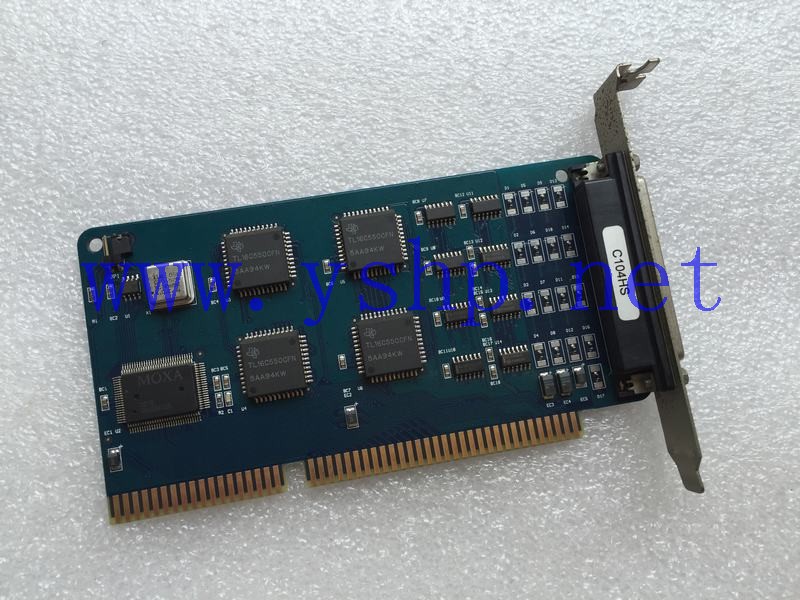

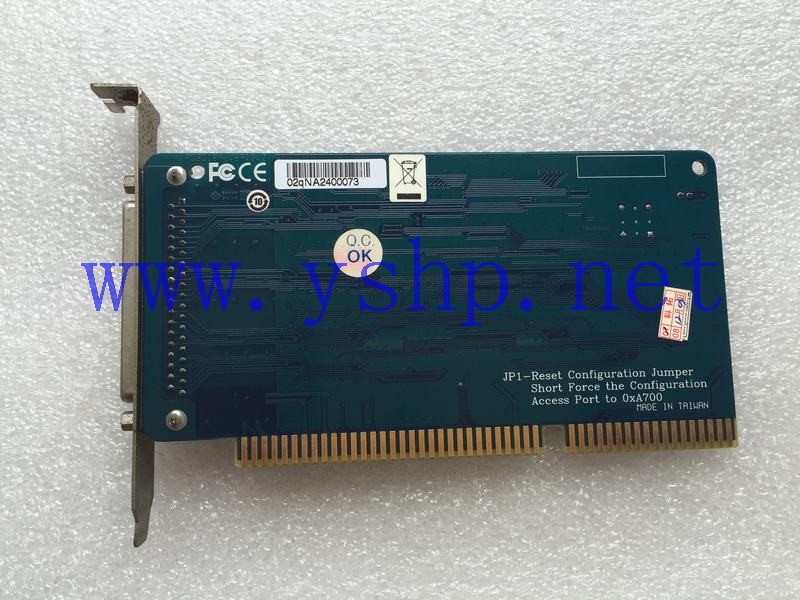

上海源深科技 上海 MOXA 摩莎 ISA C104HS 232卡 4口 PCI串口卡 4-port 高清图片
