上海 HP PCI-X 双口 1000M 千兆 网卡 NC7170 313586-001 313559-001

上海 HP PCI-X 双口 1000M 千兆 网卡 NC7170 313586-001 313559-001

  • 上架时间:
    商品点击数:3457
  • 本店售价:面议 Inquiry
    用户评价: 969508902@qq.com
  • 购买数量:

商品描述:

商品属性

上海源深科技&服务器配件供应商

产品名称:HP PCI-X 双口 1000M 千兆 网卡 NC7170 313586-001 313559-001

备件号:313586-001 313559-001

Feature Specification
Part Numbers Option #: 313881-B21

Spare #: 313586-001

Assembly #: 313559-001
Gigabit Throughput Combined with Legacy Ethernet Support A 1000Mbps Ethernet transfer rate delivers outstanding network performance that improves response time and removes bottlenecks. Because the NC7170 supports both 10Mbps Ethernet and 100Mbps Fast Ethernet in addition to Gigabit Ethernet, users are guaranteed end-to-end protocol support across their enterprise.
PCI-X Data Path HP was an early champion of PCI-X bus technology and has played a key role in the development and industry adoption of the PCI-X specification. The NC7170 features a PCI-X 64-bit/133MHz data path, which yields faster transmissions with lower CPU utilization than earlier PCI-based, gigabit fiber solutions.
Load Balancing Transmit Load Balancing (TLB) and Switch-assisted Load Balancing (SLB) are two advanced features that customers can use to build a bigger pipe for improved networking bandwidth. These port bonding techniques enable users to install up to eight NC7170 adapters in a ProLiant server and aggregate their throughput up to a theoretical maximum of 16Gigabits per second full-duplex transmissions.
Jumbo Frames Jumbo Frames (also known as Extended Frames) offer a 9K byte Maximum Transmission Unit (MTU), which is six times the size of traditional Ethernet frames. Like all HP ProLiant server adapters, the NC7170 supports jumbo frames as a way to achieve higher throughput and better CPU utilization when deployed in a network infrastructure that supports them. Jumbo frames are particularly useful for database transfers and tape backups.
Advanced TCP Offloading Capability TCP/IP is the protocol used in Ethernet transmissions; and typically the network’s TCP/IP segmentation and transmission are done by the operating system's protocol stack. The advanced capabilities of the NC7170 shown below improve network performance by offloading functions from the CPU to the adapter and are the most advanced TCP Offloading capabilities for ProLiant servers at the present time.

  • TCP Checksum Offloads is a feature that reduces the load on the CPU for overall improved system response.
  • Large Send Offloads/TCP Segmentation Offloads are capabilities that allow the TCP segmentation to be handled by the adapter itself; thus saving host CPU cycles for enhanced performance when there are large amounts of data sent across the network. This capability further reduces the load on the CPU for overall improved system response.
  • Interrupt Moderation is a feature that groups multiple packets, thereby reducing the number of interrupts sent to the host. This process optimizes host efficiency, leaving the CPU available for other duties.
PCI-X Support for Traditional PCI slots PCI-X technology ensures hardware investment protection by retaining backward compatibility with the standard PCI bus architecture at the device and driver level. When the NC7170 is used in a traditional 64/100, 64/66, 64/33, or 32/33 PCI IO slot, its performance is limited to the maximum of the conventional bus architecture.
Dual Ports Two Gigabit ports allow users to save slots in situations where their servers are slot-constrained. HP has long been an advocate of dual port adapters for servers; the NC7170 is the latest in our legacy of best-of-breed dual port devices for ProLiant servers.
Network Fault Tolerance (NFT PCI Hot Plug

)
Network Fault Tolerance, sometimes called "failover" or "NIC Redundancy," allows for the installation of multiple NC7170 server adapters so that the active device can be backed up by a redundant adapter to improve availability. HP’s teaming utility also allows users to specify that when a failed adapter is fixed and replaced, the original adapter resumes its function as the primary network connection.
PCI Hot Plug The NC7170 ships with PCI Hot Plug support, which enables it to be replaced or added to a PCI Hot Plug compatible server without powering down the system. This feature provides increased system availability and serviceability in business-critical computing environments.
Distance capabilities The NC7170 supports cable runs up to 100 meters (328 feet).
Auto-negotiation The NC7170 automatically senses and configures itself to the speed of the device to which it is attached. It also automatically configures for half or full duplex, depending on the duplex mode of the switch, hub, or router at the other end of the cable.
Wake-on-LAN The NC7170 provides Wake-on-LAN (WOL) support through the PCI bus. A system that supports Wake on LAN can remain available to a systems administrator during its normal downtime. Once the machine is awakened, the systems administrator can remotely control, audit, debug, or manage the machine.
Management Support Like all ProLiant server adapters, the NC7170 ships with drivers and agents that can be managed from all versions of Insight Manager. Additionally, it supports any management application that supports SNMP.
Server Integration The SmartStart configuration utility includes setup support for the NC6170 so that the adapter can be configured as part of the SmartStart configuration process. Insight Manager can recognize the NC6170 individually or in a port-bonded team, and it can collect and report SNMP statistics on the adapter events. Integrated Management Log (IML) support is provided by the NC6170 for critical event logging on ProLiant servers.
Configuration Utilities Each NC7170 ships with a suite of OS-tailored configuration utilities that allow the user to run initial diagnostics and configure adapter teams for Network Fault Tolerance, Transmit Load Balancing, or Switch-assisted Load Balancing (802.3ad static-mode configuration only) in the Windows Server 2003 and Windows 2000 operating systems.
LED Indicators Bracket LED indicators show link integrity, network activity, and speed on each port for easy troubleshooting.
适合机器:HP服务器

保修期限:保修一个月



感谢您惠顾源深科技,本公司备有全系列服务器配件,出售的配件都可以开具正规机打发票,如果无法在我们网站上找到自己需要的产品,可拨打下方的联系电话直接询问,谢谢!





联系人:杨 先 生

淘宝旺旺:点击这里给我发消息

QQ:
点击这里给我发消息 969508902

MSN:969508902@qq.com

手机:15900814815

上海源深科技 上海 HP PCI-X 双口 1000M 千兆 网卡 NC7170 313586-001 313559-001 高清图片

上海源深科技 上海 HP PCI-X 双口 1000M 千兆 网卡 NC7170 313586-001 313559-001 高清图片

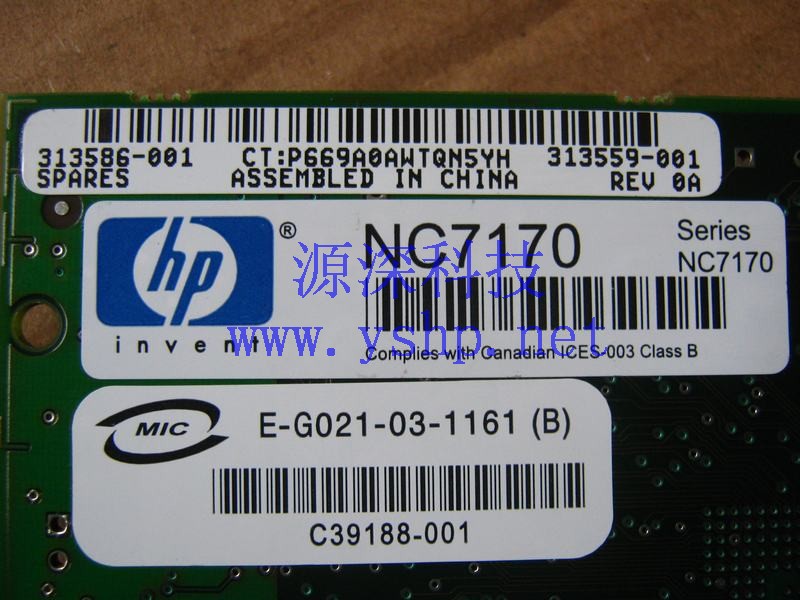

上海源深科技 上海 HP PCI-X 双口 1000M 千兆 网卡 NC7170 313586-001 313559-001 高清图片
