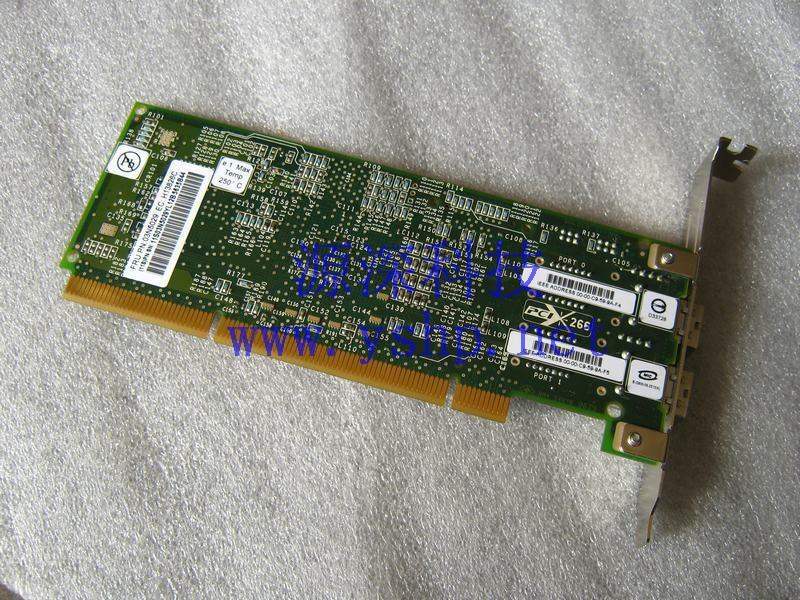

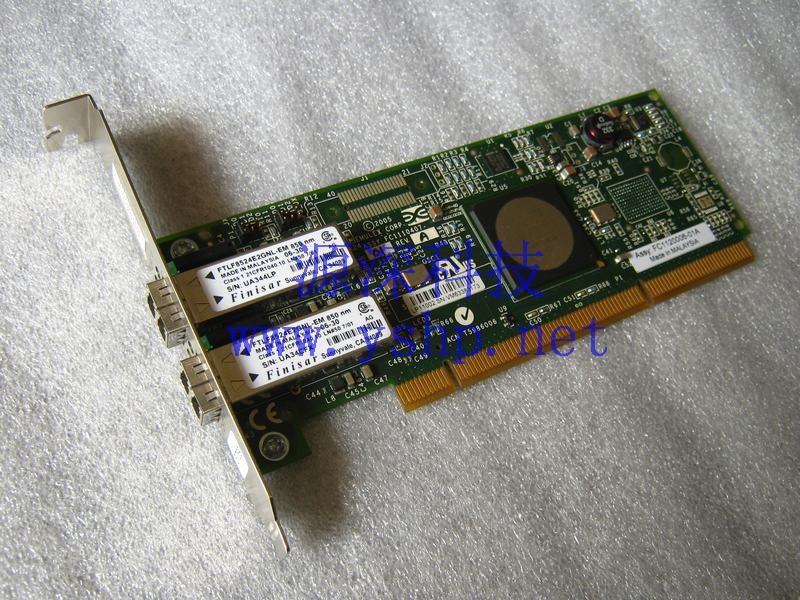

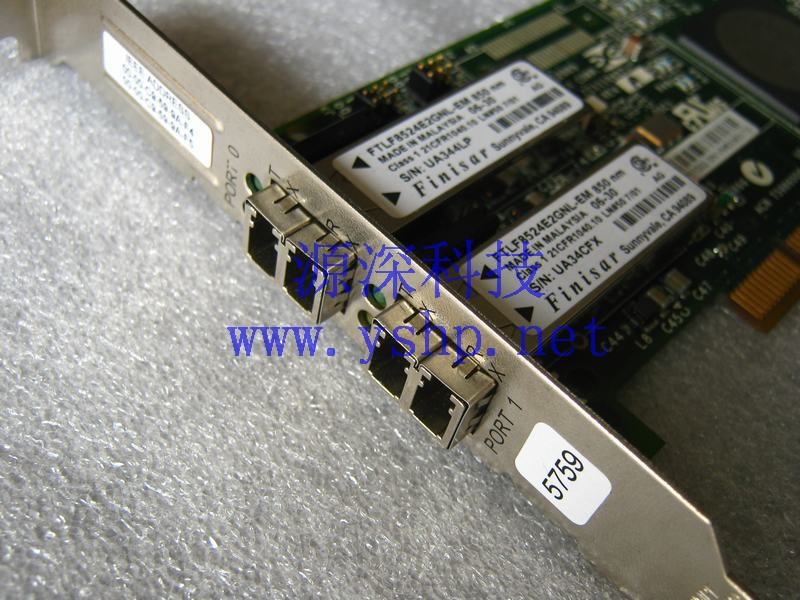

产品名称：IBM 原装 PCI-X 4GB 光纤卡 HBA 通道卡 03N5029 5759

备件号：03N5029 5759



 Adapter specifications

Adapter FRU number

03N5029^* or 03N5020^**

^* Designed to comply with RoHS requirement.
^** Not designed to comply with the RoHS requirement.

Wrap plug FRU number

11P3847 (FC 1910, 5759)

I/O bus architecture

PCI-X 2.0a, PCI 3.0, PCI-X Mode 2 - 266 MHz, PCI-X Mode 1 - 133 MHz, PCI - 66 MHz

Slot requirement

One available 3.3 volt PCI or PCI-X slot

FC compatibility

1, 2, 4 gigabit

Cables

50/125 micron fiber (500 MHz*km bandwidth cable)

• 1.0625 Gbps 2 – 500 m

• 2.125 Gbps 2 – 300 m

• 4.25 Gbps 2 – 150 m

62.5/125 micron fiber (200 MHz*km bandwidth cable)

• 1.0625 Gbps 2 – 300 m

• 2.125 Gbps 2 – 150 m

• 4.25 Gbps 2 – 70 m

Maximum number

For system-specific adapter placement information, see the PCI adapter placement for machine types 82xx and 91xx or the PCI adapter placement for machine type 94xx topic collections.

Operating system or partition requirements

AIX 5L™ Version 5.2 with the 5200-08 Technology Level

AIX 5L Version 5.3 with the 5300-04 Technology Level

Red Hat Enterprise Linux® version 4 U2

SUSE Linux Enterprise Server 9 SP3



适合机器：服务器

保修期限：保修一个月



感谢您惠顾源深科技，本公司备有全系列服务器配件，出售的配件都可以开具正规机打发票，如果无法在我们网站上找到自己需要的产品，可拨打下方的联系电话直接询问，谢谢！





联系人：杨 先 生

淘宝旺旺：

QQ： 969508902

MSN：969508902@qq.com

手机：15900814815
