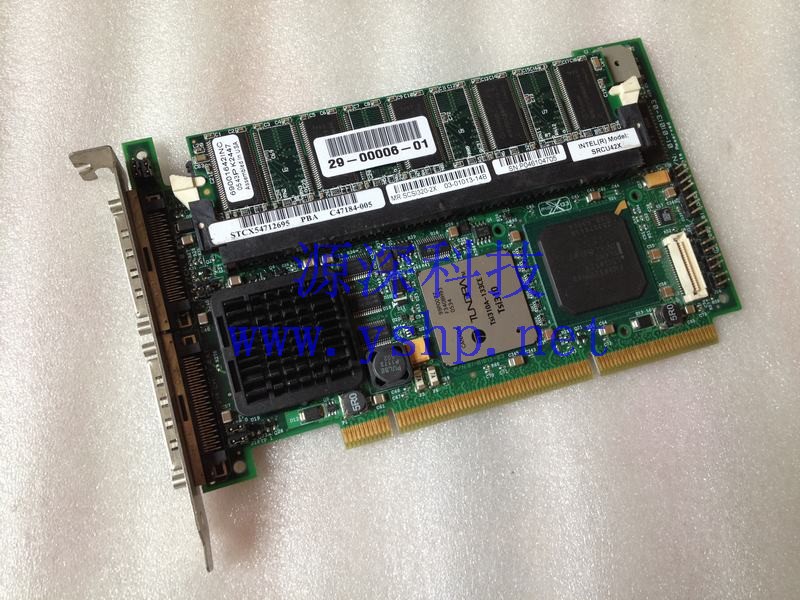

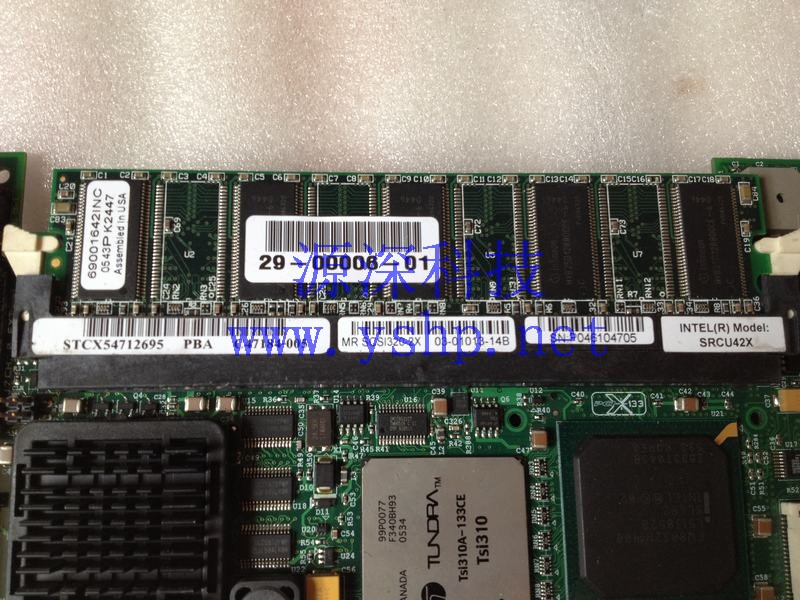

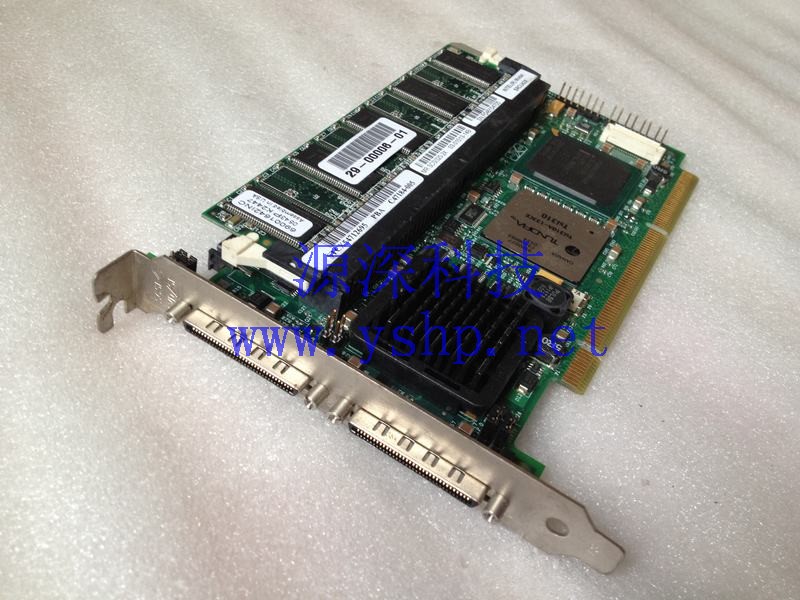

Product Name：上海 Intel SCSI阵列卡 128M缓存 SRCU42X 29-00006-01 SCSI320-2X STCX54712695

Part Number： SRCU42X



Intel� RAID Controller SRCU42X Features & Benefits Features Benefits Intel� IOP321 I/O processor Outstanding RAID performance Two-channel Ultra320 SCSI with support for up to 30 drives High I/O bandwidth (320 MB/sec per SCSI channel) and I/O expandability 64-bit/133MHz PCI-X interface Rapid data-transfer rate, high availability and flexibility Support for RAID levels 0, 1, 5, 10, 50, and JBOD Flexibility for optimizing performance and fault tolerance in a variety of solutions 128MB DIMM included (supports 32MB-512MB of PC1600 ECC DDR SDRAM) Data integrity New software suite: Intel� RAID BIOS Console, Intel� RAID Web Console, Intel� RAID Command Tool, Intel� RAID Diagnostics, Intel� RAID Flash Utilities Ease of management, monitoring, reporting, and diagnostics Background initialization and instant availability Immediate accessibility to the host operating system, shorter build time Online capacity expansion and RAID-level migration Availability and flexibility Remote event monitoring via SNMP Manageability and availability SAF-TE-compliant Reliability with hot-plug and hot-spare support Microsoft* Server Clustering Support3 High availability Optional battery-backup unit Data reliability

Controller SRCU42X Specifications Hardware Processor Intel� IOP321 I/O processor: based on Intel� XScale� technology, with hardware XOR Memory Supports 32MB-512MB of PC1600 ECC DDR SDRAM (ships with 128MB DIMM installed) PCI 64-bit/133MHz PCI-X interface (PCI 2.2 and PCI-X 1.0 compliant), 3.3V adapter, backward compatible to 33MHz and 66MHz. SCSI Two-channel Ultra320 SCSI with support for up to 30 drives (15 per channel), each channel has one internal 68-pin connector (UHD LVD), and one external 68-pin connector (VHDC LVD) Form Factor Half-length, full-height PCI: 175mm x 107mm (6.875" x 4.2") Status Indicators Audible alarm, LEDs Software RAID Levels Supported 0, 1, 5, 10, 50, and JBOD Scalability Online RAID-level migration and capacity expansion without reboot Configuration Flexibility Variable data stripe size-configurable per array, configurable JBOD enclosure support, support for non-hard-disk-drive SCSI devices (for example, tape, CD-ROM), and read/write controller and disk caching Availability Instant availability and background initialization, automatic rebuild with private (dedicated) or pooled (global) hot-fix (spare) drives, hot-plug drive support, and drive roaming

Condition：服务器

Warranty：30 days
