Product Name：上海 IDE转SATA接口 转接板 ACE-7923H

Part Number： ACE-7923H

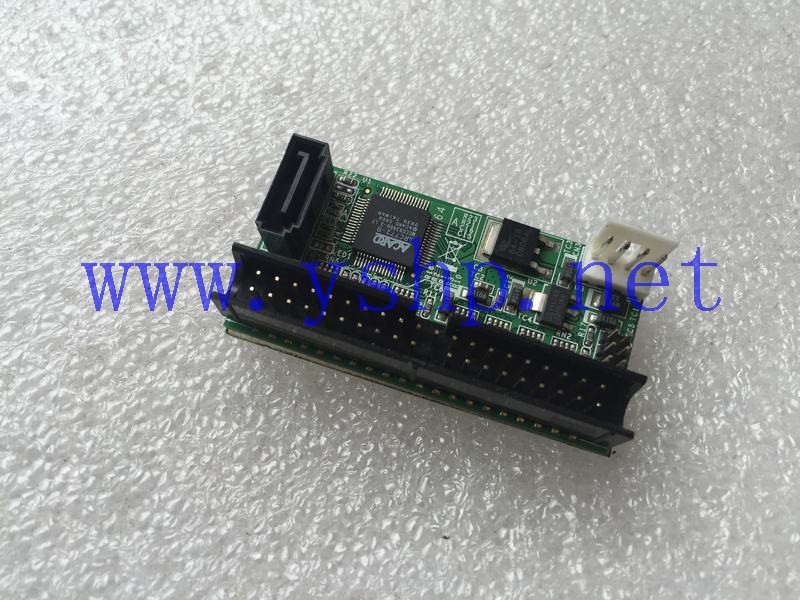

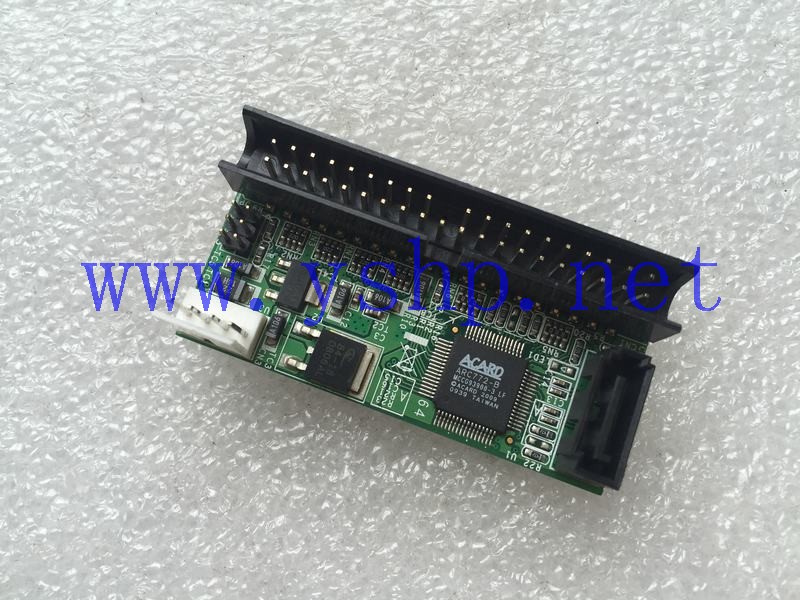

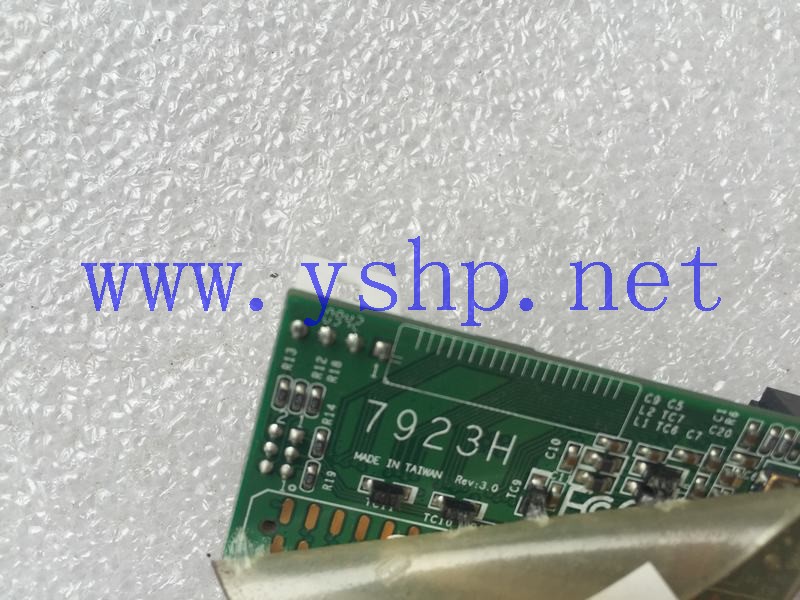

AEC-7923H is a IDE-to-SATA II bridge that mainly converts your SATA hard drive or CD/DVD drive into ATA interface. The newer generation of ACARD IDE-to-SATA II bridge supports SATA I/II device. The great compatibility and low cost makes AEC-7923H become an easy solution for PC users to transform the existing SATA I/II devices to ATA HDD or ATA ODD.

No driver needed

LED indicator to display

One PATA port for host (use a short, flex 40-pin, 80-conduct, ATA cable to connect IDE port)

Easy to install and use

Supports PIO mode 0 to 4

ACARD IDE-to-SATA Bridge Controller

One 7-pin internal SATA port for device (Vertical SATA connector with latch key and metal cover)

High-efficiency IDE transfer (ATA 133MB/sec)

Power requirement: 5V

Support 48-bit LBA addressing mode ("Big Drive" Technology)

ATAPI packet command set

Supports Ultra DMA mode 0 to 6 with data rate up to 133MB/sec



Serial ATA 1.5G/3G selective jumper on-board

Condition：服务器

Warranty：30 days
